Productdetails:
|
Model: | C9500-40X-A | Omschakelingscapaciteit: | tot 960 Gbps |
---|---|---|---|
Het door:sturen van Tarief: | Tot 720 Mpps | BORREL: | 16 GB |
Flash: | 16 GB | Afmetingen: | 10,73 x 17,5 x 21,52 inch |
Voorwaarde: | Verzegeld gloednieuw | Garantie: | 1 jaar |
Levertyd: | 2-3 dagen | Betaling: | T/T, Western Union, Paypal |
Vervoer: | DHL, FEDEX, UPS |

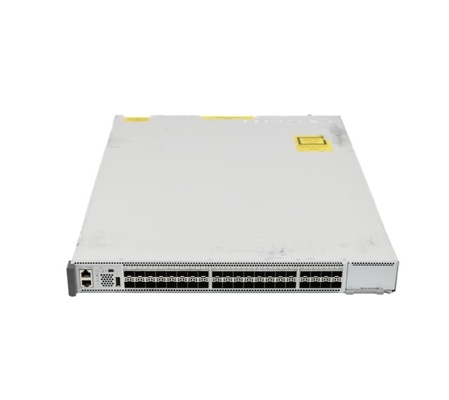

De C9500-40X-A is een van de Cisco Catalyst 9500 Series Switches.ondersteuning van volledige programmeerbaarheid en onderhoudsbaarheidOp basis van een x86-CPU is de Catalyst 9500-serie het belangrijkste speciaal gebouwde vaste kern- en aggregeringsplatform van Cisco, gebouwd voor beveiliging, IoT en cloud.De Catalyst 9500-serie is de eerste speciaal gebouwde 40 Gigabit Ethernet-switchlijn van de industrie die is gericht op de bedrijfscampus..
De aanbevolen elementen voor de C9500-40X-A.
Categorie | Model | Beschrijving |
Stroomvoorziening
|
PWR-C4-950WAC-R | 950W AC Config 4 Stroomvoorziening van voren naar achteren |
PWR-C4-950WAC-R/2 | 950W AC Config 4 Stroomvoorziening van voren naar achteren | |
Consolekabels
|
CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft met RJ45 en DB9F |
CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft met USB Type A en mini-B |
C9500-40X-A specificaties |
|
Prestatiespecificaties | |
Schakelcapaciteit | tot 960 Gbps |
Uitwisselingspercentage | Tot 720 Mpps |
Totaal aantal MAC-adressen | Tot 64.000* |
Totaal aantal IPv4-routes (Address Resolution Protocol [ARP] plus geleerde routes) |
Tot 64.000 indirecte* Tot 32.000 gastheer* |
Totaal aantal IPv6-routes |
Tot 32.000 indirect* Tot 16.000 gastheer* |
Multicast schaal | Tot 48.000* |
QoS ACL schaal | Tot 18000* |
Beveiligings-ACL-schaal | Tot 18000* |
FNF-gegevens | Tot 512.000* |
DRAM | 16 GB |
Flash | 16 GB |
VLAN-ID's | 4000 |
Totale virtuele interfaces (SVI's) | 4000 |
Jumbo frame | 9198 bytes |
Specificaties van de voedingsbron | |
Stroomvoorziening | Ondersteuning in de Catalyst 9500-serie |
Maximaal aangewezen wisselstroomvermogen | 950 W |
Stroomverbruik van het systeem | maximaal 850 W |
Invoerspanningsbereik en frequentie | AC 115 tot 230 VAC, 50 tot 60 Hz |
Energie-efficiëntie | 94% |
Totaal vermogen BTU (opmerking: 1000 BTU/uur = 293 W) | 2901 BTU/uur (850 W) max. |
Inlaatstroom | AC 10A bij 115VAC, 5A bij 230VAC |
Outputclassificaties | 12V bij 79A, 12V bij 3A |
Outputhoudtijd | AC = 10 ms bij maximale belasting |
Inlaatvaten voor stroomvoorziening | AC IEC 60320 C16 |
Kwalificatie van het voedingskabel | AC 15A |
Afmetingen, fysische specificaties en MTBF | |
Beschrijving | Specificaties |
Afmetingen (H x W x D) | 10,73 x 17,5 x 21,52 inch |
Rack-eenheden (RU) | 1 RU |
Inlaatspanning | 90 tot 264 VAC |
Werktemperatuur | 32°F tot 104°F (0° tot 40°C) |
Bergingstemperatuur | -4° tot 149°F (-20° tot 65°C) |
Relatieve luchtvochtigheid in bedrijf en niet in bedrijf |
Omgevings (niet-condenserende) werking: 5% tot 90% Omgeving (niet-condenserende) niet-opererende en opslag: 5% tot 95% |
Hoogte | Operatie tot 6000 ft |
MTBF (uren) | 180,640 |
