ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default

ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default
ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default

Grote Afbeelding :  ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default

Productdetails:
Plaats van herkomst: CHINA
Merknaam: CISCO
Certificering: CE
Modelnummer: ISR4221/K9
Betalen & Verzenden Algemene voorwaarden:
Levertijd: 2-3 dagen
Betalingscondities: T/t
Contact

ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default

beschrijving
Productnaam: Router Onderdeelnummer: ISR4221/K9
Betaling: TT Verzending: DHL
Voorwaarde: Nieuw Doorlooptijd: 2-3 dagen
Garantie: 1 jaar Trefwoorden: ISR 4351

ISR4221/K9 Specification

Cisco ISR4221/K9 Specifications
Aggregate Throughput 35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2
RJ-45-based ports 2
SFP-based ports 1
Enhanced service-module slots 0
Doublewide service-module slots 0
NIM slots 2
OIR (all I/O modules) No
Onboard ISC slot No

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

 4 GB
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) 4 GB
Default memory DDR3 ECC DRAM (data plane) NA
Maximum memory DDR3 ECC DRAM (data plane) NA
Default memory DDR3 ECC DRAM (control/services plane) NA
Maximum memory DDR3 ECC DRAM (control/services plane) NA
Default flash memory 8 GB
Maximum flash memory 8 GB
External USB 2.0 slots (type A) 1
USB console port -type B mini (up to 115.2 kbps) 0
Serial console port - RJ45 (up to 115.2 kbps) 1 (combo CON/AUX port)

Serial auxiliary port - RJ45

(up to 115.2 kbps)

 1 (combo CON/AUX port)
Power-supply options External: AC Only
Redundant power supply N/A
AC input voltage 100 to 240 VAC autoranging
AC input frequency 47 to 63 Hz
AC input current range, AC power supply (maximum) 1.5 to 0.6A
AC input surge current 90 A peak and less than 3 Arms per half cycle
Typical power (no modules) (watts) 24
Maximum power with AC power supply (watts) 90
Maximum power with PoE power supply (platform only) (watts) NA (no PoE support)
Maximum endpoint PoE power available from PoE power supply (watts) NA (no PoE support)

ISR4221/K9 Overview

Cisco 4221 Integrated Services router is design to deliver advanced services to the small enterprise branch environment. It delivers 35Mbps throughput by default. With pay-as-you-grow performance, you can increase forwarding capacity to 75Mbps by buying licenses.

Quick Specs

Table 1 shows the Quick Specs.

Product Code Cisco ISR4221/K9
Aggregate Throughput 35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports 2
RJ-45-based ports 2
SFP-based ports 1
NIM (Network Interface Modules) slots 2
Onboard ISC slot No

Default memory double-data-rate 3 (DDR3) error-correction-code

(ECC) DRAM (Combined control/services/data planes)

 4 GB
Flash Memory 8 GB
Power-supply options External AC only
Rack height 1 RU
Dimensions (H x W x D) 1.72 x 12.7 x 10 in (43.7 x 322.6 x 254 mm)
Weight with AC PS (no modules) 7.1 lb (3.22 kg)

Product Details

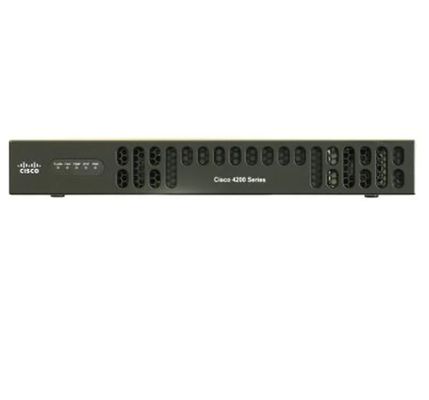

Figure 1 shows the LEDs on the front panel of the Cisco ISR4221/K9.

ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default 0

·There are 4 LEDs on the front panel.

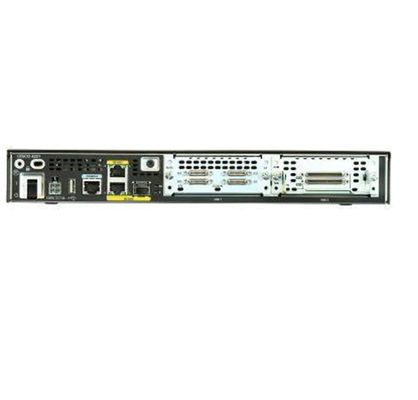

Figure 2 shows the back panel of Cisco ISR4221/K9.

ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default 1

Note:

① GE 0/0/0 RJ-45 (copper cable) port ⑤ Console port
② Power switch ⑥ GE 0/0/1 (copper cable) port
③ Power input connector ⑦ GE 0/0/0 SFP (fiber-optic) port
④ GE “MGMT” port (with USB port below) ⑧ NIM slots

The Modules & Cards

Table 2 shows some recommended modules and cards.

Items Models Description
Console and Auxillary Cables CAB-CONSOLE-RJ45 Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
Network Interface Modules NIM-1MFT-T1/E1 Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module
NIM-ES2-4 Cisco 4000 Series Integrated Services Router 4-Port Gigabit Ethernet Switch Module layer 2
NIM-ES2-8 Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM
SFPs for On-Board GE Ports GLC-LH-SMD Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM
GLC-ZX-SMD Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM
GLC-SX-M  MD Cisco GLC-SX-M M D 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM

Compare to Similar Items

Table 3 shows the comparison.

Technical Specifications ISR4461/K9 ISR4451-X/K9 ISR4431/K9 ISR4351/K9 ISR4331/K9 ISR4321/K9 ISR4221/K9
Aggregate Throughput 1.5Gbps

1 Gbps to

2 Gbps

500 Mbps to

1 Gbps

200 Mbps to

400 Mbps

100 Mbps to

300 Mbps

50 Mbps to

100 Mbps

 35 Mbps to 75 Mbps
Total onboard WAN or LAN 10/100/1000 ports 4 4 4 3 3 2 2
RJ-45-based ports 4 4 4 3 2 2 2
SFP-based ports 4 4 4 3 2 1 1
Enhanced service-module slots 3 2 0 2 1 0 0
Doublewide service-module slots 2 1 (assumes no singlewide SM-X modules installed) 0 1 (assumes no singlewide SM-X modules installed) 0 0 0
NIM slots 3 3 3 3 2 2 2
OIR (all I/O modules) Yes Yes Yes Yes Yes Yes No
Onboard ISC slot 1 1 1 1 1 1 No








ISR4221/K9 ISR 4221 with 2 onboard GE, 2 NIM slots, 1 ISC slot, 8 GB Flash Memory default, 4 GB DRAM default 2
