Product Overview

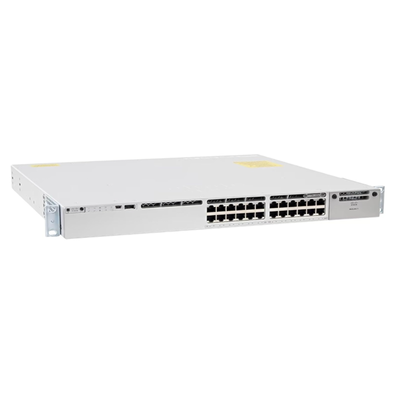

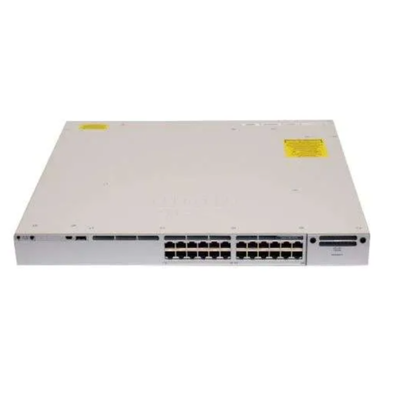

The Cisco C9300-24P-A is an enterprise-class Layer 3 access switch designed for modern campus, branch, and enterprise networks. As part of the Cisco Catalyst 9300 Series, this model delivers 24 Gigabit Ethernet PoE+ ports, advanced Network Advantage licensing, StackWise-480 technology, and flexible modular uplink options.
Built for high-density wireless deployments, IP telephony, surveillance systems, and IoT environments, the C9300-24P-A combines exceptional performance, intelligent automation, and advanced security features. With support for Cisco SD-Access, MACsec encryption, advanced routing protocols, and programmable Cisco IOS XE software, it provides a future-ready networking foundation for digital transformation initiatives.
Whether upgrading an existing network or deploying a new enterprise infrastructure, the Cisco Catalyst 9300 Series offers the scalability, reliability, and security required by today's demanding business environments.
Quick Specifications
| Item |
Specification |
| Model |
C9300-24P-A |
| Product Series |
Cisco Catalyst 9300 |
| Ports |
24 × 10/100/1000 PoE+ RJ45 |
| Software License |
Network Advantage |
| Switching Capacity |
208 Gbps |
| Forwarding Rate |
154.76 Mpps |
| PoE Budget |
445W |
| Stacking Technology |
StackWise-480 |
| Stacking Bandwidth |
480 Gbps |
| Power Supply |
715W AC |
| Uplink Slot |
Modular Network Module |
| Management |
Cisco IOS XE |
| Rack Height |
1RU |
Detailed Specifications
| Feature |
Description |
| Product Number |
C9300-24P-A |
| Ethernet Ports |
24 × Gigabit Ethernet PoE+ |
| PoE Standard |
IEEE 802.3af / 802.3at |
| Maximum PoE Output |
Up to 30W per port |
| Available PoE Power |
445W |
| Network License |
Cisco Network Advantage |
| Layer 3 Routing |
OSPF, EIGRP, BGP, IS-IS |
| Virtualization |
VRF, VXLAN, LISP |
| Security Features |
MACsec, TrustSec, Secure Boot |
| Automation |
Cisco DNA Center Ready |
| Operating System |
Cisco IOS XE |
| Stacking Support |
Up to 8 switches |
| Stack Bandwidth |
480 Gbps |
| Memory |
8GB DRAM |
| Flash Storage |
16GB |
| Uplink Expansion |
1 Modular Uplink Slot |
| Management Interfaces |
CLI, Web UI, SNMP, RESTCONF |
| Rack Mountable |
Yes |
Key Features and Benefits
1. Enterprise-Class PoE+ Performance
The C9300-24P-A provides 24 PoE+ Gigabit Ethernet ports capable of delivering up to 30W per port, supporting:
- Wi-Fi 6 / Wi-Fi 6E Access Points
- IP Phones
- HD Surveillance Cameras
- IoT Devices
- Building Automation Systems
This eliminates the need for separate power supplies and simplifies deployment.
2. Advanced Network Advantage Licensing
Unlike Network Essentials models, the Network Advantage license enables:
✔ Full Layer 3 Routing
✔ BGP Support
✔ VRF Segmentation
✔ Advanced Multicast
✔ SD-Access Fabric Deployment
✔ Policy-Based Routing
Ideal for enterprises requiring complex routing and network segmentation.
3. StackWise-480 High Availability
Cisco StackWise-480 technology allows multiple switches to operate as one logical device.
Benefits include:
- Up to 480Gbps stacking bandwidth
- Simplified management
- Fast failover
- Improved network resiliency
- Reduced downtime
4. Enhanced Security Architecture
The Catalyst 9300 Series integrates multiple security mechanisms:
- Secure Boot
- Cisco Trust Anchor Technology
- AES-256 MACsec Encryption
- Cisco TrustSec
- Encrypted Traffic Analytics (ETA)
Helping organizations implement Zero Trust networking strategies.
5. Future-Ready Programmability
Powered by Cisco IOS XE, the switch supports:
- REST APIs
- NETCONF
- Python Scripting
- Streaming Telemetry
- Cisco DNA Center Automation
Enabling network automation and simplified operations.
C9300-24P-A vs C9300-24P-E
| Feature |
C9300-24P-A |
C9300-24P-E |
| License |
Network Advantage |
Network Essentials |
| BGP Routing |
Yes |
No |
| VRF Support |
Yes |
Limited |
| SD-Access Features |
Full |
Basic |
| Advanced Segmentation |
Yes |
No |
| Enterprise Routing |
Full Layer 3 |
Standard Layer 3 |
| Recommended For |
Large Enterprises |
SMB & Basic Enterprise |
Which Model Should You Choose?
Choose C9300-24P-A if:
- You require BGP routing
- You plan to deploy Cisco SD-Access
- Your network uses VRF segmentation
- Future scalability is important
Choose C9300-24P-E if:
- Basic Layer 3 routing is sufficient
- Budget is the primary consideration
- Advanced enterprise features are unnecessary
Applications
The Cisco C9300-24P-A is ideal for:
Enterprise Campus Networks
Provides secure and scalable access-layer connectivity.
Branch Offices
Supports advanced routing and centralized management.
Education Networks
Powers wireless APs, VoIP phones, and security cameras.
Healthcare Facilities
Delivers reliable connectivity for medical systems and IoT devices.
Smart Buildings
Supports automation, surveillance, and access control infrastructure.
Why Buy From Us?
100% Original Cisco Hardware
All products are genuine Cisco equipment.
Fast Global Shipping
Worldwide delivery through DHL, FedEx, UPS, and TNT.
Competitive Pricing
Professional sourcing and inventory management ensure attractive pricing.
Technical Support
Pre-sales and post-sales technical assistance available.
Warranty Protection
Comprehensive warranty coverage for peace of mind.
Bulk Order Discounts
Special pricing available for distributors, integrators, and enterprise projects.
FAQ
Q1: Is the C9300-24P-A brand new and original?
Yes. We supply original Cisco hardware with serial numbers and manufacturer identification.
Q2: What is the difference between Network Advantage and Network Essentials?
Network Advantage provides advanced routing protocols, VRF, SD-Access capabilities, and enhanced security features, while Network Essentials focuses on standard Layer 2 and basic Layer 3 functionality.
Q3: Does the switch support PoE+?
Yes. All 24 ports support IEEE 802.3at PoE+, delivering up to 30W per port.
Q4: Can I stack multiple C9300 switches together?
Yes. Using Cisco StackWise-480 technology, up to 8 switches can be stacked and managed as a single unit.
Q5: Which uplink modules are supported?
The C9300-24P-A supports multiple modular uplink options including:
- C9300-NM-4G
- C9300-NM-8X
- C9300-NM-2Y
- C9300-NM-2Q
allowing flexible migration from 1G to 40G uplinks.
Q6: Can the switch support Wi-Fi 6 access points?
Absolutely. The PoE+ power budget and enterprise performance make it ideal for Wi-Fi 6 and Wi-Fi 6E deployments.
Q7: What warranty and after-sales service do you provide?
We provide:
- Product warranty coverage
- Technical support
- RMA assistance
- Fast replacement service
- Dedicated account management
